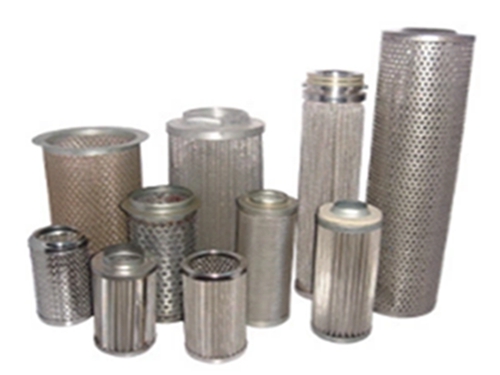

Stainless steel cartridge filter
· Features: small size, light weight, easy to use, large filtration area, low blocking rate, fast filtration speed, no leakage, good thermal dilute stability and chemical stability. This filter can remove most of the particles, so it is widely used in precision and sterilization process. The filter cartridge can be equipped with 1 core, 3 core, 5 core, 7 core, 9 core, 11 core, 13 core, 15 core and other folding filter length of 10, 20, 30, 40 inches filter material polytetrethylene, polysulfone, nylon, polypropylene, acetate fiber filter aperture: 0.1um, 0.22um, 1um, 3um, 5um, 10um and other hydrophobic (for gas) and hydrophilic (for liquid) filter elements, can be selected according to need
· Main technical parameters:
· Filtration volume T/H: 0.05-20
The pressure of filter is MPA: 0.1-0.6
Number of cores: 1, 3, 5, 7, 9, 11, 13, 15,
The characteristics and application of various filter elements: polytetrafluoron film (PTFE) filter element, adit film (HE) filter element, polypropylene film (PP) filter element, acetate fiber film (CN-CA) filter element, filtration accuracy from 0.1-60um, length of 10; 20; 30 and 40 inches (i.e. 250; 500; 750; 1000mm) four kinds, the above filter element, pressure resistance is 0.42mpa, can recoil. The interface mode has insertion type (222, 226 two) and flat mouth type two
· I. Characteristics of stainless steel filter element:
· 1. Good filtration performance and uniform surface filtration performance for 2-200um filtration particle size
· 2. Good corrosion resistance, heat resistance, pressure resistance and wear resistance;
· 3. Stainless steel filter element with uniform porosity and stable filtration accuracy;
· 4. The flow rate per unit area of stainless steel filter element is large;
· 5. Stainless steel filter element is suitable for low and high temperature environment; After cleaning, it can be used again without replacement.
